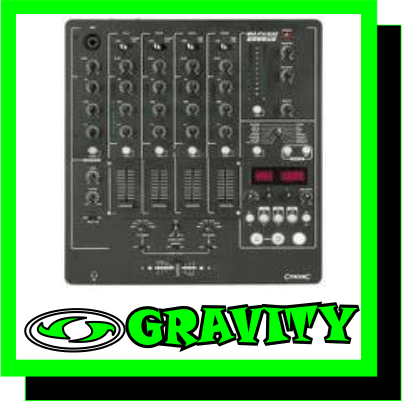

CITRONIC The SM-FX400 Ultima Digital USB mixer is a 4-channel mixer offering USB inputs and an advanced DSP effect unit with on-board sampler. It has 2 Mic inputs, one of which is controlled with the dedicated Mic channel and one assigned to the 4th channel as an extra option. Mic 1 has a 3-band EQ and Mic override system and each of the 4 channels has an individual gain control and 3-band EQ offering +12dB of boost and -36dB offering total kill. Each of the music channels are fully assignable to the optical crossfader on either side A or B. The on-board digital effects processor offers 12 effects and 2 sampler banks.
TECHNICAL SPECIFICATION
- 4 channel 11 input + 2 selectable DJ mixer
- Dual USB inputs
- On-board digital effect processor
- Sampler with crossfade trigger assign
- Beat synchronised effects
- Individual gain controls per channel
- 3-band EQ on all music channels +12dB Boost -36dB KILL
- Master mic input with gain control and 3 band EQ +/-10dB
- Mic override button
- User replaceable channel faders
- Easy-glide optical crossfader
- Fully assignable crossfade with fader start
- Headphone mix and split cue facility
- Digital output
- Record output
- Booth output
- Balanced XLR master output
- Auxillary Mic on music channel 4
- Master balance control
- Master cue select
- 10-bar LED monitor per channel
