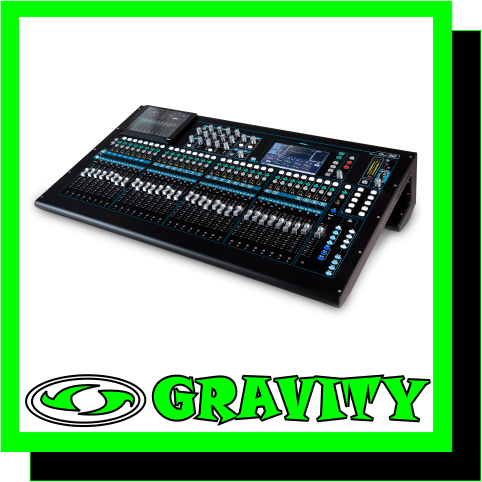

Qu-32

DIGITAL MIXING RESHAPED
Now in a feature-packed new Chrome Edition, Qu-32 reshapes digital mixing, combining innovative design and exceptional functionality to create a superb professional mixing experience. Bristling with all the features you’d expect from a top of the range digital console and incorporating technologies pioneered on the GLD and iLive digital mixing systems, Qu-32 has the power and pedigree to deliver class-leading audio performance.

Qu series features include multitrack recording direct to USB, Automatic Mic Mixing, ProFactory mic presets, plus an ever growing ecosystem of apps, accessories and remote I/O.

Whether you’re switching from analogue or updating your digital desk, it’s time to experience the new digital with Qu-32

Feature Summary:
-32 Mono Mic/Line Inputs (TRS + XLR)
-Recallable AnaLOGIQTM Preamps
-3 Stereo Inputs (TRS)
-24 Mix Outputs (XLR)
-4 Stereo Groups (switchable to Mix mode)
-Up to 11 Monitor Mixes (4 mono + 7 stereo)
-2 Stereo Matrix Outs
-4 FX Engines
-4 dedicated FX Sends / Returns
-4 Mute Groups
-4 DCA Groups
-AES Digital Out
-32×32 USB Audio Interface
-dSNAKETM Remote Audio Port
-33 Motor Faders
-7” Touchscreen
-10 Soft Keys
-Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
-Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
-Automatic Mic Mixer
-Channel Ducker on all inputs
-ProFactory Mic Presets
-RackFX Library
-Built-in Signal Generator
-RTA with Peak Band indication
-Spectrogram to aid feedback elimination and room acoustics
-Automatic Mic Mixer
-Qu-Drive Direct Multitrack Recording / Playback on USB drives
-DAW MIDI Control
-Qu-Pad iPad App
-Qu-You iPhone / Android personal monitoring app
-Qu-Control customisable iOS app for simple wireless control
-Compatible with ME Personal Mixing System
-High contrast metallic finish controls, matching premium GLD Chrome series

Qu-32 has an integrated multitrack USB recorder, providing 18 channels of 48kHz, 24bit recording and playback straight to / from your USB key or hard drive. Capturing multitrack recordings of your shows has never been so easy. A selectable stereo pair can be recorded alongside the 16 Mono channels, and multitrack audio can be played back to the 16 Mono inputs plus ST1. On top of this, Qu-Drive also provides stereo recording patchable from any pair of Mix outputs, the Main LR (pre, post, or summed to mono) or even the PAFL bus, with 2- track stereo playback to ST3.
