Hybrid A2200MK5 Power Amplifier with DSP  8Ohm Stereo Power . RMS/CH 550W 4Ohm Stereo Power . RMS/CH 1100W 8Ohm Bridged Mono Power . RMS 1640W 4Ohm Bridged Mono Power . RMS 1800W  Frequency Response (+/- 3dB . 1W/8O) 20Hz 20KHz +/- 3dB Protection DC Protection . Short Circuit Protection . Thermal Protection . Inrush Current Protection . Soft Start Portection . Input & Overload Protection THD+N (20Hz-20KHz) <0.5% Damping Factor (1KHz @ 8O) >300 Hum & Noise(A weighted . -80dBW) 95dB Input Impedance (Balanced / Unbalanced) 20K Ohm / 10K Ohm Crosstalk (20Hz-20KHz Rated Power 8O) >60dB Cooling 2 x Fans . Dual speed . Front to Rear Airflow  Input Connectors Jack/Female XLR Neutrik Combo + Male XLR Neutrik Output Connectors Neutrik Speakon + Binding Post Dimensions (WxHxD) mm 482 x 397 x 88 Weight Kg 20

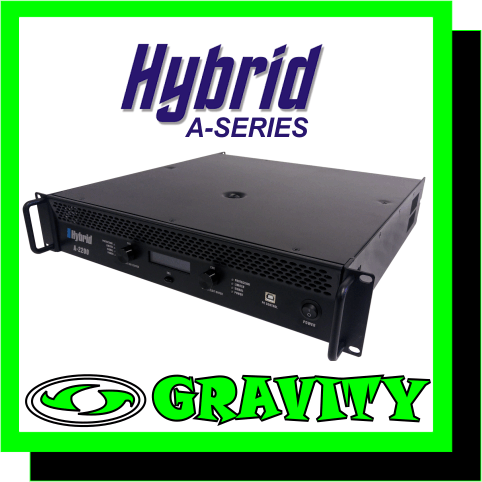

Hybrid A2200MK5 Power Amplifier with DSP

8Ohm Stereo Power . RMS/CH 550W
4Ohm Stereo Power . RMS/CH 1100W
8Ohm Bridged Mono Power . RMS 1640W
4Ohm Bridged Mono Power . RMS 1800W

• Complete DSP functions
• HPF and LPF Crossover
• 9 x Filters - PEQ, Low Shelve, High Shelve
• Time Alignment Delay
• Compressor / Limiter
• Gain and Phase
• Password Protected
• 30 Preset Locations - Store and Recall
• On-Board or PC Control

Frequency Response (+/- 3dB . 1W/8O) 20Hz 20KHz +/- 3dB
Protection DC Protection . Short Circuit Protection . Thermal Protection . Inrush Current Protection . Soft Start Portection . Input & Overload Protection
THD+N (20Hz-20KHz) <0.5%
Damping Factor (1KHz @ 8O) >300
Hum & Noise(A weighted . -80dBW) 95dB
Input Impedance (Balanced / Unbalanced) 20K Ohm / 10K Ohm
Crosstalk (20Hz-20KHz Rated Power 8O) >60dB
Cooling 2 x Fans . Dual speed . Front to Rear Airflow

Input Connectors Jack/Female XLR Neutrik Combo + Male XLR Neutrik
Output Connectors Neutrik Speakon + Binding Post
Dimensions (WxHxD) mm 482 x 397 x 88
Weight Kg 20
