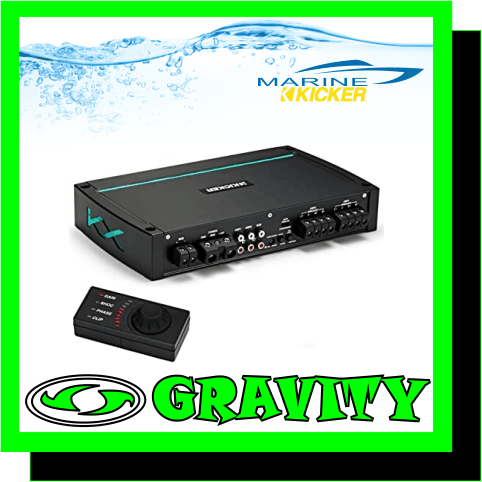

KXMA800.5 5-Channel 800-watt Class-D Marine Amplifier
The KXM 800-watt five-channel amplifier is a full system in a single package. KickEQ ™ delivers an enormous 18dB of variable bass boost while a powerful 24dB crossover lets you quickly tune and tweak your sound. A revolutionary illuminated clip indicator is built right into the gain knob to get the most power without distorting the signal.
A wireless controller is also included for perfecting your sound on the fly. Monitor and adjust gain, bass boost, clipping and more without leaving the driver’s seat!
5-channel marine amplifier
50 watts RMS x 4 + 200 watts RMS x 1 at 4 ohms
100 watts RMS x 4 + 400 watts RMS x 1 at 2 ohms
200 watts RMS x 2 bridged at 4 ohms + 400 watts RMS x 1 at 2 ohms
subwoofer channel 1-ohm stable — 400 watts RMS (+/-10%) x 1 at 1 ohm)
Class D amp technology
gain knobs also function as clip lights
Amp 1: variable high- or low-pass filter (10-5000 Hz, 24 dB/octave)
Amp 2: variable high-pass (10-500 Hz, 24 dB/octave), low-pass (40-5000 Hz, 24 dB/octave), or bandpass (engages both) filter
Sub channel: variable low-pass filter (40-160 Hz, 24 dB/octave), subsonic filter (10-80 Hz, 24 dB/octave), and variable bass boost (0-18 dB at 40 Hz)
KXARC Bluetooth® wireless remote on sub channel controls:
gain: 0 dB (no change) to -26 dB
SHOCwave (Sub Harmonic Octave Creation) bass restoration
clip LED indicator
weather-resistant conformal-coated circuit boards
front-mounted controls protected behind gasket-sealed fold-down door
Fail-Safe Integration Technology eliminates noise from your vehicle’s electrical system
preamp and speaker-level inputs (speaker wire to RCA adapterrequired for speaker-level input)
wiring and hardware not included with amplifier
4-gauge power and ground leads and a 100-amp fuse recommended
for multiple amplifiers, an additional 100-amp in-line fuse between the distribution block and this amplifier is recommended
dimensions: 12-3/4?W x 2-3/16?H x 8-5/16?D
KXMA800.5 5-Channel 800-watt Class-D Marine Amplifier:
Class D Power Plant
One-Ohm Stable Bass Channel
SHOCwave™ Bass Restoration Processor
KXARC Wireless Remote Included
Gain Control With “Optimal Input” Indicator
Variable 24dB Subsonic Filter
FIT2™ (Fail-Safe Integration Technology) Circuitry
Variable 24dB Crossover
KickEQ ™ 18dB Variable Bass Boost
ABYC/NMMA Compliant Power Terminals
Conformal-Coated Circuit Boards
Easy Access to Settings behind Gasket-Sealed Cover Panel
Black Anodized Aluminum Chassis
Top-Mounted Teal LED Light Pipe
Stainless Steel Mounting Hardware Included
RMS Power [Watts]
@ 14.4V, 4Ohm stereo, = 1% THD N: 50 x 4
@ 14.4V, 2Ohm stereo, = 1% THD N: 100 x 4
@ 14.4V, 4Ohm bridged mono, = 1% THD N: 200 x 2
Sub Channel RMS Power [Watts]
@ 14.4V, 4Ohm mono, = 1.5% THD N: 200 x 1
@ 14.4V, 2Ohm mono, = 1.5% THD N: 400 x 1
@ 14.4V, 1Ohm mono, = 1% THD N : /- 10%
Very cool wireless remote
Kicker’s unique KXARC Bluetooth® wireless remote control comes with this amplifier. So from the driver’s seat, you can adjust the level of the sub channel, add bass using Kicker’s SHOCwave™ bass restorer, switch sub phase, and get warnings when the sub channel clips.
Versatile controls behind the folding door
A gasket-sealed front door gives you quick and easy access to your amp’s controls. You can tune for almost any kind of speaker, as the steeply-sloped high- and low-pass filters offer a wide range of adjustment. The filter section for the rear channels can be set up for bandpass operation — where both the high- and low-pass filters are engaged to allow only the frequencies between them to play — for optimizing the signal for midrange speakers in a 3-way system.
The subwoofer channel includes a bass boost for adding some kick to your music, along with a subsonic filter that eliminates the extra-low, inaudible frequencies that only waste your sub’s energy.
Dependable power for your boat’s sound system
Kicker built their KXMA800.5 marine 5-channel amplifier to run your boat’s entire system. It can power four speakers with 50 watts RMS each while driving a subwoofer with up to 400 watts RMS. This reliable and compact KXM Series rocker remains cool even when pushed hard, thanks to its high-mass heatsink, high-tech internal components, and efficient full-range Class-D amp technology. Want something a little louder? You could also use this amp in 3-channel mode to send 200 watts RMS each to some high-performance components, and a sub with 400 watts.
The KXMA800.5 will also work well powering a 3-way system, with the Amp 1 channels running the tweeters, Amp 2 the midrange speakers, and the Sub channel taking care of the bass.
Made for marine use
This rugged amp features a conformal-coated circuit board for improved water and dust resistance, plus corrosion-resistant power connections, a gasket-sealed front cover, and stainless steel mounting hardware that won’t rust all over your boat’s gel coat or carpeting.
Kicker employs their Fail-Safe Integration Technology (FIT2™) to reject noise and stop any interference generated by your boat’s electronics, so you’ll enjoy your music clean and pure. Speaker-level inputs make it possible to hook this amp up to almost any receiver or radio. Kicker also helps you set this amp’s gain properly, by offering free test tones for downloading. You play a tone and turn the gain up until the gain knob glows red. Then, you turn it down until it just goes out, and the amp’s gain is set perfectly.
KXMA800.5 5-Channel 800-watt Class-D Marine Amplifier The KXM 800-watt five-channel amplifier is a full system in a single package. KickEQ ™ delivers an enormous 18dB of variable bass boost while a powerful 24dB crossover lets you quickly tune and tweak your sound. A revolutionary illuminated clip indicator is built right into the gain knob to get the most power without distorting the signal. A wireless controller is also included for perfecting your sound on the fly. Monitor and adjust gain, bass boost, clipping and more without leaving the driver's seat!
